The Chapel developer community is pleased to announce the release of Chapel 2.8! As with other recent versions, a big focus for this release was improvements to Chapel’s tools ecosystem. As always, you can download and install this new version in a [note:Please note that some formats may not yet be available at time of publication…], including Spack, Homebrew, various Linux package managers, Docker, and source tarballs.

This article summarizes several of Chapel 2.8’s highlights, including:

Other notable highlights of Chapel 2.8 that aren’t covered by this article include:

For a far more complete list of improvements in Chapel 2.8, see its entries in CHANGES.md. And a big thanks to everyone who contributed to Chapel 2.8!

Chapel Language Server and Linter

Since our 2.0 release, Chapel has provided two key tools that enable users to write code more productively: the Chapel Language Server (CLS) and the chplcheck linter. This 2.8 release includes several improvements to both of these tools.

Editing, Resolution, and Inlays

When we first wrote about CLS, we covered language server features that relied on resolution, dubbing them experimental. At that time, the Dyno resolver was in a much more primitive state. In the 2.3 release, Dyno acquired the ability to resolve domains and promoted expressions, while the 2.4 release enabled it to resolve arrays. Since then, the Dyno resolver has continued to make great strides, and today is capable of resolving a substantial (though not complete) portion of the language. As a result, the experimental support for resolution-driven features in CLS has been steadily growing more robust.

In the 2.8 release, we’ve spent some time tracking down bugs that specifically affected CLS in established codebases such as Mason. The result should be a relatively stable experience when using these resolution-driven features.

The following screenshot shows inferred types and other information (using a lighter background and blue font) while editing part of the Mason codebase. Notably, the execopts.these() call at the end of the block demonstrates a resolved iterator. Other hints in this file show off successfully resolved calls to other modules in the Mason source code, as well as correct understanding of bundled package types such as Toml.

We’ve also improved the behavior of information displayed in this manner (“inlays”, in language server terminology). Specifically, since CLS presently computes this information upon saving a file, we’ve adjusted the inlays to be invalidated (if necessary) when editing a file, until the file is saved. This avoids pain from stale inlays intermingling with source code as it is being modified.

New Linting Checks

Building on a number of improvements to our compiler’s tracking of source locations in this release, we’ve also introduced a number of new rules to the chplcheck linter. These include:

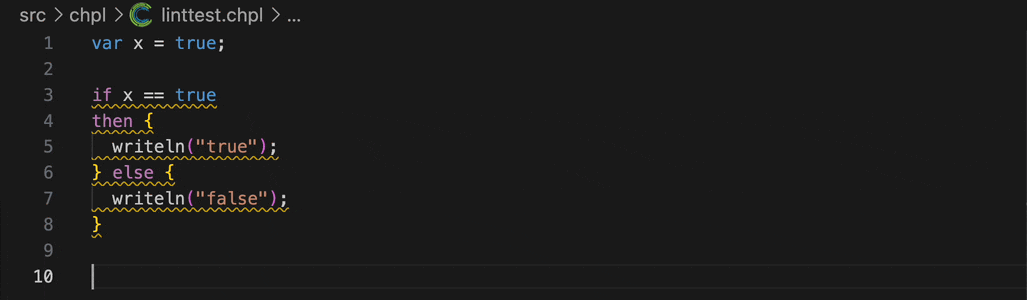

The following animated GIF demonstrates these three checks being flagged, as well as chplcheck’s built-in functionality to automatically fix them.

CMake Integration

New in this release, Chapel’s CMake integration can use the chpl-shim tool (previously covered in our article on editor integration) to generate a .cls-commands.json file for a Chapel project. This significantly improves the experience of using CLS with CMake-based Chapel projects, since it allows the editor to reason natively about the project’s source structure. This new integration also enables other patterns, such as source generation: generated files in the build directory can now be properly found and integrated with other files in the project.

Enabling this integration boils down to using the new CMAKE_EXPORT_CHPL_COMMANDS environment variable:

mkdir build
cmake -B build -DCMAKE_EXPORT_CHPL_COMMANDS=ON
cmake --build build

After executing these commands, the build directory will contain a .cls-commands.json file. A common pattern is then to symbolically link this file to the project root:

ln -s build/.cls-commands.json .cls-commands.json

From there, CLS should be usable as normal. Subsequent builds will update the
.cls-commands.json file, if necessary.

Debugging

For this release, we continued improving the debugging experience for Chapel users. Chapel 2.8 adds new pretty-printers for common Chapel data structures, like list, set, map, and distributed arrays. In addition, 2.8 expands the set of expressions that can be evaluated within the debugger

New pretty-printers

As an example of the new pretty-printing capabilities, consider the following program, noting that it contains a simple bug since it tries to read a non-existent key from a map:

mapDebug.chpl
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

use Map;

proc getIt(m) {
  var val = m["it"];  // this is an error since 'it' wasn't stored in map 'm'
  return val;
}

proc main() {
  var m: map(string, int);
  m["this"] = 22;
  m["or"] = 33;
  m["that"] = 44;
  var val = getIt(m);
  writeln('m["it"] is ', val);
}

If we run this program, the bug will cause it to halt due to the error not being caught and handled:.

mapDebug.good
1
2
3
4
5
6
7
8

warning: '--debug' now implies '--debug-safe-optimizations-only'. If you only want debug symbols, use '-g' or '--debug-symbols'.
uncaught KeyNotFoundError: key 'it' not found
  mapDebug.chpl:4: thrown here
  mapDebug.chpl:4: uncaught here
Stacktrace

getIt() at mapDebug.chpl:4
main() at mapDebug.chpl:13

Re-running in a debugger permits us jump to the stack frame where the error occurs and inspect the state of the program. With the new pretty-printers, we can easily see the contents of the map m and understand why the error is occurring.

These new pretty-printers are useful by themselves, but they are built on top of powerful new debugging capabilities that we’ll describe next:

Expression Evaluation

In this release, we dramatically improved the ability of the debugger to reason about Chapel expressions. As an example, consider the following program:

distance.chpl
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

use List;
use Random;

var rs = new randomStream(real, 123456);

record point {
  var x, y: real;
}

proc point.distanceTo(other: point) do
  return sqrt((other.x - this.x)**2 + (other.y - this.y)**2);

proc main() {
  var points: list(point);
  for 1..10 do
    points.pushBack(new point(rs.next(-10.0, 10.0),
                              rs.next(-10.0, 10.0)));
  writeln("points: ", points);
  for i in 0..<points.size {
    for j in 0..<points.size {
      if i == j then continue;
      var d = points[i].distanceTo(points[j]);
      writef("distance between %? and %? is %n\n",
              points[i], points[j], d);
    }
  }
}

We can run this program in the debugger and set a breakpoint on the .distanceTo() method:

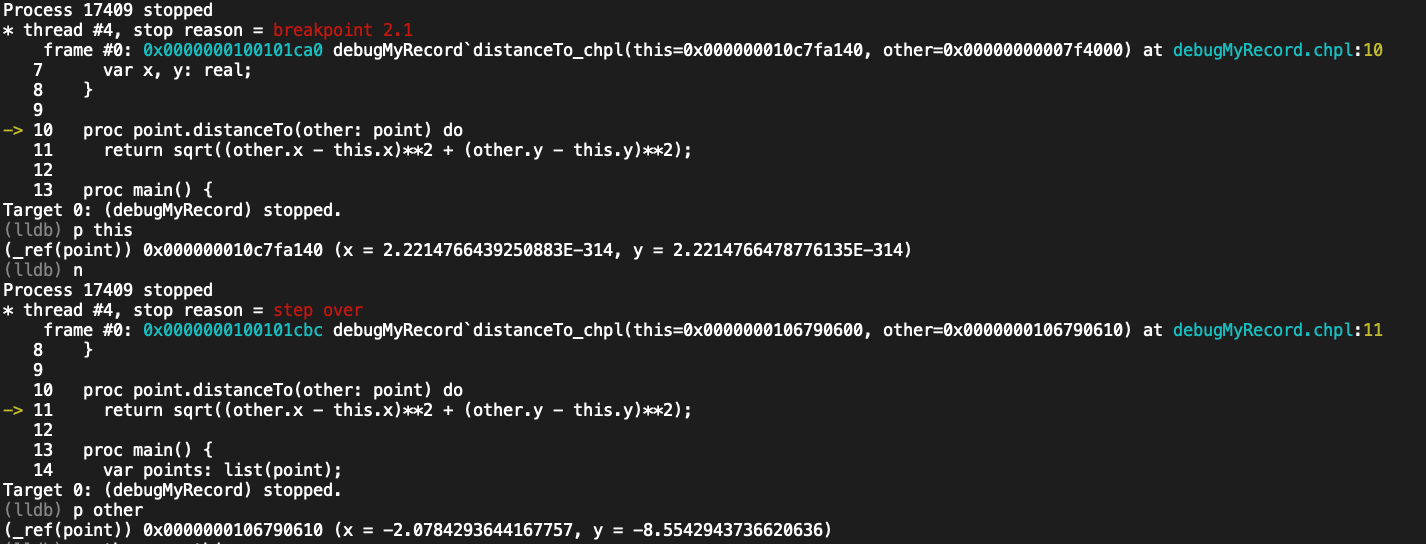

Once we hit the breakpoint, we can step into the method and inspect both this and other:

In addition, we can perform arbitrary arithmetic with those values:

We can even invoke the .distanceTo() method directly from the debugger. This is not yet perfect and has some limitations, but most of the time those limitations can be worked around to obtain the needed information, as demonstrated below:

This is a huge improvement over previous releases, in which none of the above was possible.

These new features help make the Chapel debugging experience much more like debugging conventional languages like C or C++. The net result improves the ability to run Chapel programs in a debugger and has enabled us to track down and fix bugs in Chapel code far more quickly. We are excited to hear feedback from users about how they are applying these new features in their own debugging workflows.

Loop-Invariant Code Motion for Arrays

Like most compiled languages, Chapel relies on Loop-Invariant Code Motion (LICM) as an optimization to avoid executing code redundantly within loop bodies. In this release, we improved Chapel’s LICM to enable vectorization and improve performance.

(“Hold up… What’s Loop-Invariant Code Motion?”)

As a trivial example of Loop-Invariant Code Motion, the following computation of halfPi does not need to be re-evaluated in each of the loop’s n iterations, since its value is independent of i:

forall i in 1..n {
  const halfPi = pi / 2;
  A[i] *= halfPi;
}

As a result, compilers can use LICM to rewrite this loop as follows, hoisting the computation out of the loop to avoid the redundant effort:

const halfPi = pi / 2;
forall i in 1..n {
  A[i] *= halfPi;
}

When compiling Chapel programs, LICM is performed in [note:The reason for “both” is that it’s a no-brainer to leverage the back-end compiler to benefit from decades of C-level optimizations. The rationale for also having the Chapel compiler perform LICM is that there are cases in which it has access to high-level semantic information that is significantly obfuscated, or even lost, when lowering to the C-level code that’s handed off to the back-end. Hoisting such expressions in the Chapel compiler can therefore unlock new optimization opportunities enabled by the language’s high-level features.] the Chapel compiler and the standard LLVM or C compiler that makes up its back-end. An important case for the Chapel compiler to handle relates to the metadata used for array accesses. When it’s known that an array will not be resized within a loop, we can hoist reads of its metadata fields, as well as repetitive computations on their values, out of the loop to save work in each iteration. This is particularly important for Chapel given that its multidimensional, sparse, and/or distributed arrays can involve a significant amount of metadata that back-end compilers aren’t accustomed to (given their focus on more traditional C-style buffers, pointers, and offsets). By [note:This is an illustration of a point made in the first article of our recent 10 Myths About Scalable Parallel Programming Languages (Redux) series.], the Chapel compiler is well-suited to hoist such computations.

In Chapel 2.8, we extended Chapel’s existing LICM pass to hoist metadata computations for arrays that are declared const, knowing that they can’t change their size, shape, or indices. This work was motivated in part by Thitrin Sastarasadhit’s transformers study that was published on this blog a few months ago. Specifically, these improvements enable vectorization for key loop kernels that had previously been thwarted by such array metadata accesses.

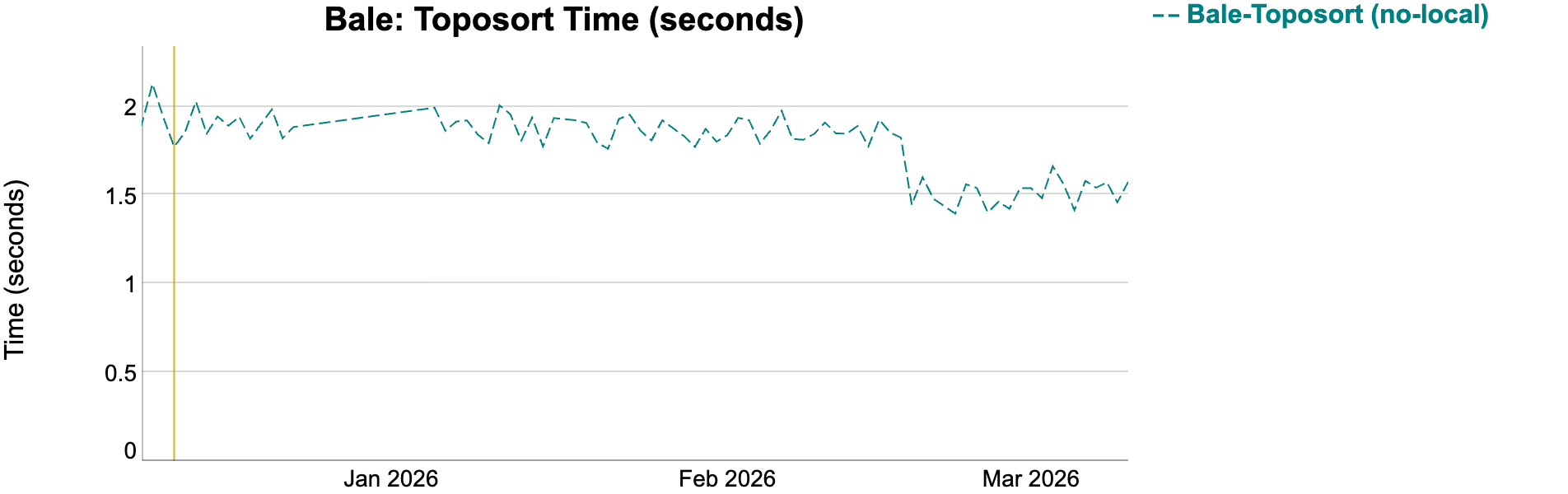

The following execution time plot, taken from Chapel’s nightly performance tracking suite, shows the impact of this optimization on a kernel motivated by Thitrin’s code:

Specifically, the loop idiom improved by ~7.5% once our LICM improvement was merged on February 17th, making its performance comparable to lower-level ways of writing the kernel that also enabled vectorization. We saw similar improvements to other longstanding, array-oriented computations such as the following port of Bale toposort:

New flag: --system-launcher-flags

Chapel 2.8 adds a new execution-time flag, --system-launcher-flags, to Chapel programs built to use Slurm-based launchers. This flag can be used to pass additional options to the underlying Slurm commands, like srun, that get the Chapel program running. This is particularly valuable when users need to specify Slurm options that aren’t supported directly by Chapel. Generally, Chapel’s standard launcher flags and environment variables should be used when applicable, with this new flag serving as a fallback.

As a motivating example, a user performing benchmarking studies who wants to override the default number of reserved specialized cores using Slurm’s --core-spec or -S flag would be at a loss using standard Chapel options, since they do not support that override. Prior to Chapel 2.8, such users would either need to rely on a Slurm environment variable to make the request, or else to abandon Chapel’s launcher and write their own Slurm script or command to launch the program (which can be tricky to get right).

However, as of Chapel 2.8, users can run their program with --system-launcher-flags "-S 0" to have Chapel pass -S 0 to the underlying srun command that’s invoked on their behalf. This saves effort and reduces the potential for errors, while also making the command-line more explicit. We anticipate that future Chapel releases will extend this capability to support non-Slurm launchers, as desired by the user community.

Mason Package Manager

Chapel’s package manager, Mason, has seen a lot of new features added in recent releases. For version 2.8, we made a concerted effort to track down and fix many edge cases and bugs, and as a result, we are happy to report that Mason is now much more robust and reliable. This isn’t the most exciting work, but it is important for the long-term health of the tool and project.

One exciting new feature for Mason is the improved mason doc command. This effort involved several improvements to the underlying chpldoc tool, which is used to generate documentation for Chapel modules. The mason doc command now specializes the documentation for the project by default, while also giving users the tools to better customize the results.

We are really excited to see Chapel users and developers starting to create and contribute more packages to Mason. We hope to see the Mason registry grow and become a vibrant ecosystem of Chapel packages that users can easily discover and use in their own projects.

Dyno Compiler Code Generation

As you may have seen in previous release announcements, Dyno is the name of our project that is modernizing and improving the Chapel compiler. Dyno improves error messages, allows incremental type resolution, and simplifies the development of language tooling. Our team has been hard at work implementing many features of Chapel’s type system in Dyno. Among other things, this enables tools like CLS to provide more accurate and helpful information to users, as described above.

The other current focus within Dyno is taking the information that it has computed about a program and translating it into a form that the production compiler can understand, essentially skipping over its historical type resolution and analysis phases. This capability is enabled using the --dyno command-line flag. Current support is limited to a subset of Chapel’s language features, but is growing all the time.

A key milestone for Dyno in Chapel 2.8 is the ability to generate executable code for “Hello, world”-style programs. This is a significant milestone for Dyno, as it demonstrates the ability to compile many language features that the standard library relies upon. It’s also a big step toward Dyno’s goal of replacing the front-end of the production compiler.

As an example, consider the following program, which makes use of the fileWriter type and its .writeln() method in various ways:

converter.chpl
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

use IO;

var s = new file(chpl_cstdout());
var w = s.writer();

w.writeln("Hello, world!");
w.writeln(1, " ", 2.0, " three");

record R {
  var x : int;
}

// invokes Chapel's serialization framework
var r = new R(5);
w.writeln(r);

As of Chapel 2.8, this program can be [note:The --no-checks flag is used here to disable runtime checks that utilize language features not yet supported by Dyno’s code generation.] with --dyno --no-checks to have Dyno produce an executable that prints the following output:

converter.good
1
2
3

Hello, world!
1 2.0 three
(x = 5)

While a program like this may appear to be somewhat straightforward, behind the scenes it relies on many language features for its implementation. Here are just a few of the Chapel features that are being used by the IO module in this example:

Compiling such a program helps to provide a solid basis for supporting more standard libraries and language features that build upon these basic building blocks.

For More Information

If you have questions about Chapel 2.8 or any of its new features, please reach out on Chapel’s Slack workspace, Discord channel, Discourse group, or one of our other community forums. We’re always interested in hearing more about how we can make the Chapel language, libraries, implementation, and tools more useful to you.
