The Chapel developer community is pleased to announce the release of Chapel 2.7! Notably, this is the first version of Chapel to be made available since our project joined the High Performance Software Foundation this fall.

As always, you can download and install this new version in a [note:Please note that some formats may not yet be available at time of publication…], including Spack, Docker, Homebrew, various Linux package managers, and source tarballs.

This article introduces some of the highlights of Chapel 2.7, including:

In addition to the above features, Chapel 2.7 also includes improvements to the pre-built Linux packages, in terms of features and flexibility.

For more information, or a much more complete list of changes in Chapel 2.7, see the CHANGES.md file. And a big thanks to everyone who contributed to version 2.7!

Using vector libraries

One of the nice performance-oriented features added in this release improves the vectorization capabilities of the Chapel compiler through vector math libraries. Chapel already does a good job of [note:Vectorization is turning scalar code into vector code to make use of modern CPUs’ SIMD capabilities.], particularly when making use of vector math libraries such as Libmvec or SVML to accelerate math-heavy code. However, using such libraries has traditionally not been a very user-friendly experience, requiring users to specify low-level C/LLVM flags to enable this extra performance.

In this release, we added --vector-library, a new Chapel compiler flag that makes it easy to enable vector math libraries in Chapel programs. This flag takes one argument providing the name of the vector library to use. For example, to use Libmvec on x86 systems, you can compile your program like so:

$ chpl --fast --no-ieee-float --vector-library LIBMVEC-X86 myBenchmark.chpl

This makes it easier to vectorize code like the following example, which raises each element of an array to a random scalar power:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

use Random;

config const N = 1000,
       print = true;

proc main() {
  const scalar = (new randomStream(real)).next();
  var Arr, Res: [1..N] real;

  fillRandom(Arr);
  kernel(Res, Arr, scalar);
  if print then writeln(Res);
}

proc kernel(ref Res, Arr, scalar) {
  foreach (r, a) in zip(Res, Arr) {
    r = a ** scalar;
  }
}

Normally, this code would either not be vectorized at all or would require low-level tricks to get vectorized performance. Using --vector-library, the compiler can automatically make use of vector math libraries to enable big performance improvements.

Benchmarking the code above to see how much of an impact --vector-library would have, we saw more than a 2×\times speedup to the kernel() call when using --vector-library=LIBMVEC-X86 on a 32-core AMD EPYC 7543P processor, as compared to compiling without a vector library.

The --vector-library flag is a new addition to Chapel’s performance optimization toolkit, making it easier than ever to get high-performance vectorized code. We plan to continue improving the ergonomics of this flag in future releases by introducing platform-independent ways of referring to the libraries without having to embed names that are specific to the back-end compiler or CPU (like -X86 in the example above).

Debugging

A big theme of our last few releases has been improving the ability to debug Chapel programs. For this release, we continued this focus by making further improvements to the debugging experience.

Multi-locale debugging

In the Chapel 2.6 release, we introduced a new prototype parallel debugger for multi-locale programs. This tool permits users to step through their multi-locale executions in a single terminal window, setting breakpoints and inspecting variables on any given locale.

This release adds support for Chapel’s [note:In Chapel, if a variable is visible within a given scope, it is available for use by the programmer even if it is stored on a remote locale.] to the debugger. This means that while debugging a particular locale, values stored on another locale can be inspected. Combined with the ability to pretty-print Chapel types, as introduced in the last release, debugging Chapel programs has never been easier.

As an example of this, consider the following example, which declares an array on locale 1 and then accesses it remotely from locale 0:

debug.chpl
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

use Debugger;

proc main() {
  on Locales[1] {
    var myArr = [i in 1..10] i;
    breakpoint;
    on Locales[0] {
      writeln(myArr);
      breakpoint;
    }
  }
}

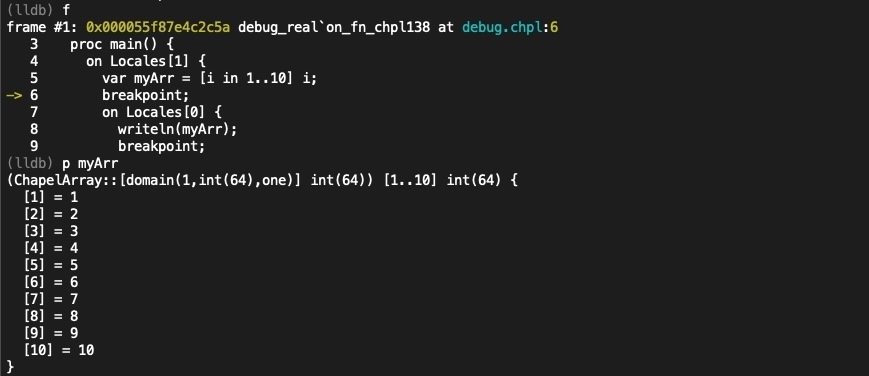

The following screenshots illustrate a debugging session for this program starting from the point when we hit the initial breakpoint on locale 1 (where we already happen to be in locale 1’s context). We start by printing myArr, which prints its values:

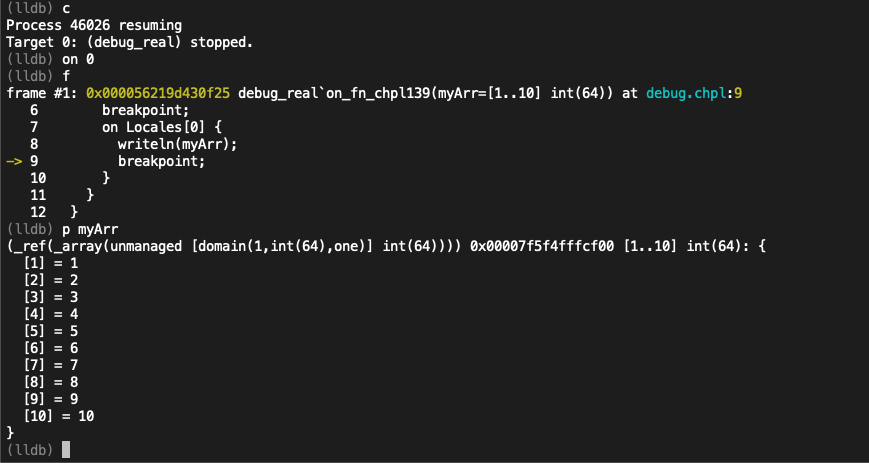

We then continue execution and hit the next breakpoint. The debugger informs us that it was a task on locale 0 that hit this breakpoint by printing Target 0: …. We can then use on 0 to switch the current debugger context to locale 0 and print out myArr there as well:

Note that on locale 0, myArr has a type of ref(_array(…)), indicating that the array we’re printing is actually a remote reference to the array on locale 1. Notably, we can still print its contents despite it being stored remotely.

We are continuing to improve chpl-parallel-debug for future releases and welcome feedback on how to make it even better.

Compiler Flags for Debugging

Another big improvement to the user experience of debugging Chapel involves changes to the compiler’s flags for debugging. The previous best practice for debugging Chapel involved compiling with debug symbols (-g) along with several additional flags to disable various Chapel optimizations. Optimizations are great for performance, but by nature they can make debugging more difficult due to their tendency to obscure the correspondence between source code and generated code. For example, this can lead to confusing behavior when stepping through code or inspecting variables. Yet, knowing which optimizations to disable required a familiarity with the Chapel compiler, not to mention lots of flags to be thrown, neither of which was ideal.

To improve this situation, we’ve added a new compiler flag, --debug-safe-optimizations-only, which disables a set of optimizations that are known to interfere with debugging. With this flag, users can now compile for debugging with 2 flags:

chpl -g --debug-safe-optimizations-only myProgram.chpl

However, even this felt [note:We pride ourselves on simple and clear flags, like --fast to make your code go fast!], so we adjusted the behavior of --debug to imply -g and
--debug-safe-optimizations-only. This means that the preferred debugging configuration can now be achieved with just a single flag!

chpl --debug myProgram.chpl

Improved stack traces

Another aspect of debugging is being able to diagnose and fix execution-time errors. When a halt occurs in a Chapel program, it can be difficult to figure out where the error occurred and what caused it. As an example, consider the following program, which prints out parts of an array using different slice arguments:

outOfBounds.chpl
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

proc main() {
  var arr = [i in -9..9] i,
      s1 = sliceToString(arr, -5..#6),
      s2 = sliceToString(arr, 0.. by 2 # 6),
      s3 = sliceToString(arr, 5..#5 by -1);
  writeln("Slice 1: ", s1);
  writeln("Slice 2: ", s2);
  writeln("Slice 3: ", s3);
}

proc sliceToString(arr, slice) {
  var s: string;
  for i in slice {
    s += arr[i]:string + " ";
  }
  return s.strip();
}

One of the slices results in an out-of-bounds array access when compiled with --checks (Chapel’s default). In Chapel 2.6, you would get an error like this by default:

outOfBounds.chpl:14: error: halt reached - array index out of bounds
note: index was 10 but array bounds are -9..9

This doesn’t provide enough information to figure out which slice is causing the halt. Prior to today’s release, there are a few ways you might figure this out:

All of these options require extra work on the part of the user, either by changing their program or changing their Chapel installation.

To improve this, in Chapel 2.7, the default build configuration and release formats now have stack unwinding support enabled by default. As a result, when compiling the program above [note:Note that compiling without debugging will also result in a stack trace, simply one with potentially less precise line number information.] and running it:

$ chpl --debug outOfBounds.chpl
$ ./outOfBounds

the following stack trace is now printed upon hitting the error:

outOfBounds.chpl:14: error: halt reached - array index out of bounds
note: index was 10 but array bounds are -9..9
Stacktrace

halt() at $CHPL_HOME/modules/standard/Errors.chpl:762
checkAccess() at $CHPL_HOME/modules/internal/ChapelArray.chpl:873
this() at $CHPL_HOME/modules/internal/ChapelArray.chpl:1002
this() at $CHPL_HOME/modules/internal/ChapelArray.chpl:1036
printSlice() at outOfBounds.chpl:14
main() at outOfBounds.chpl:4

Disable full stacktrace by setting 'CHPL_RT_UNWIND=0'

This stack trace shows the call chain that led to the halt, making it much easier to identify the source of the error. Specifically, it points to the slice on line four, 0.. by 2 # 6, as the culprit for the bug. By eliminating the need for extra steps to get a stack trace, we hope that diagnosing runtime errors in Chapel programs becomes easier than ever!

Mason Improvements

Chapel 2.7 includes a slew of improvements to Mason, Chapel’s package manager. The first highlight is better integration with Chapel’s ever-growing tooling support. In Chapel 2.6, VSCode users had to take additional steps to configure the language server so that it could recognize a Mason package’s structure. Without that additional step, users would get errors about the Chapel compiler not being able to find a module included in the Mason package, like the following::

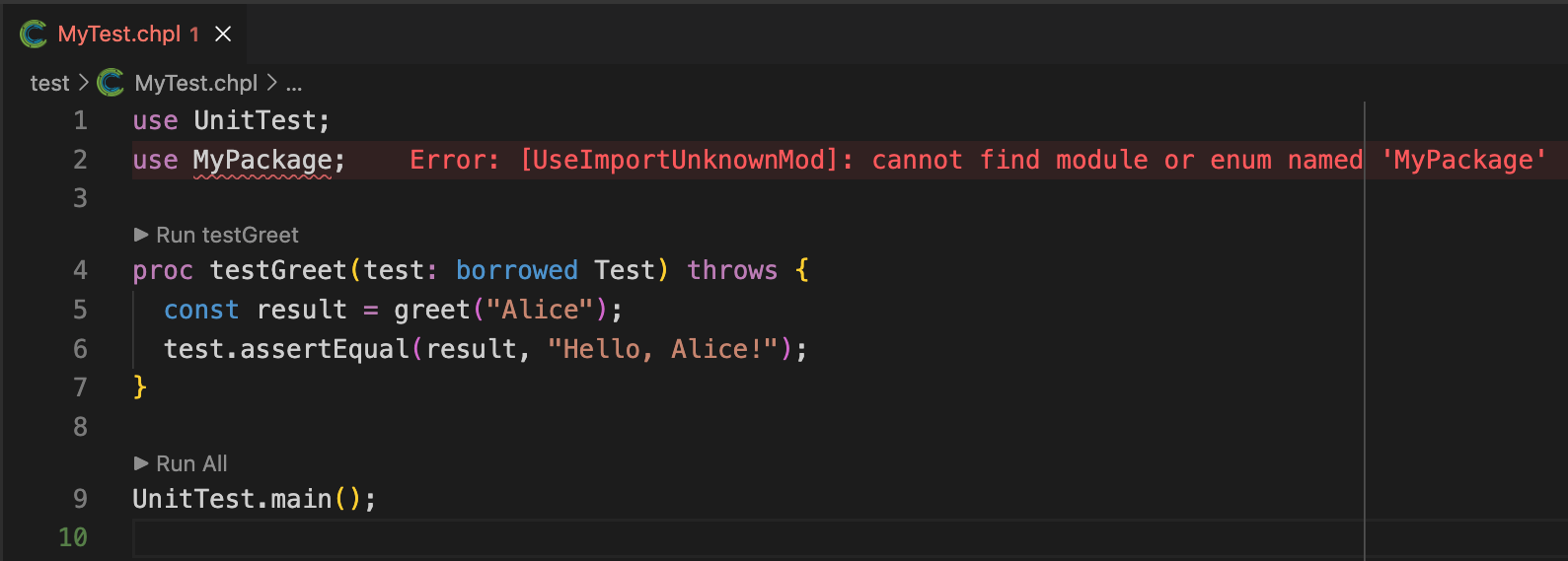

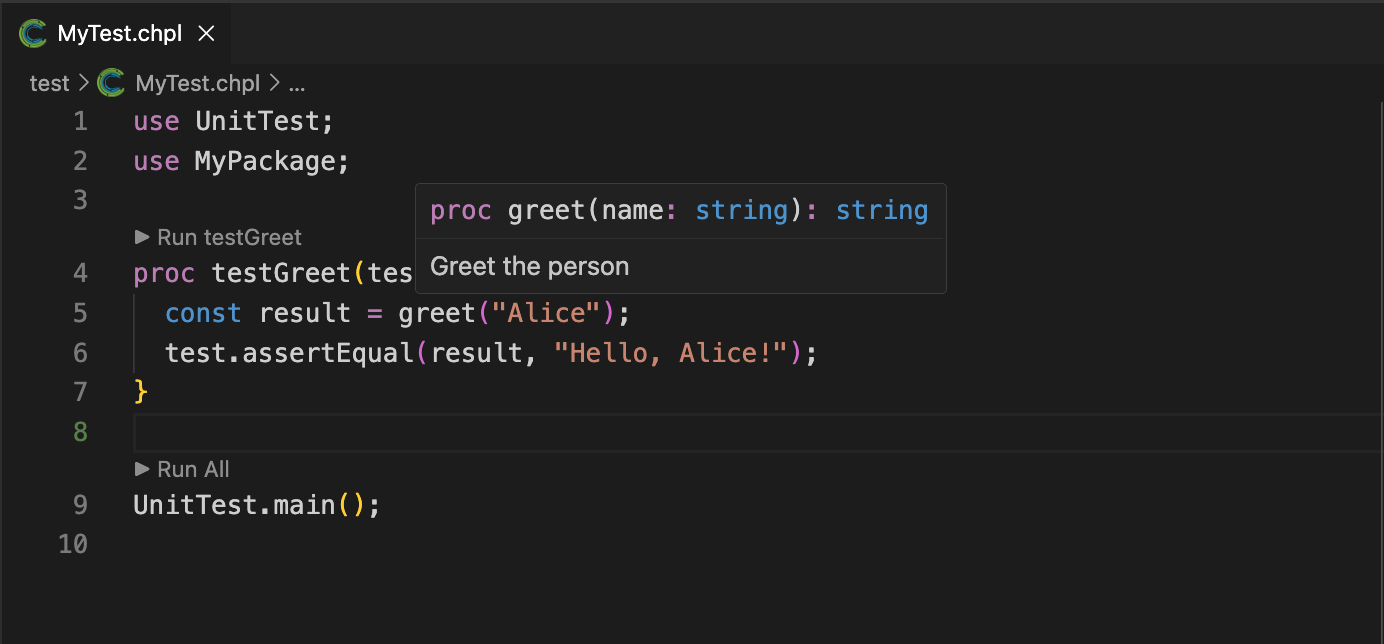

With Chapel 2.7, the additional step for Mason packages is no longer necessary. Compare the screenshot using Chapel 2.7 below with the one above to see the difference!

Another new Mason feature is support for prerequisites. This feature supports code in other languages that needs to be compiled or bootstrapped in some way before compiling the Chapel code for the Mason application or library. A common use case for prerequisites is to bundle some C code that a Chapel-based library would call into via interoperability. With the Chapel 2.7 version of Mason, package implementers can add code in other languages to be compiled alongside the Chapel code.

The initial implementation for prerequisites involves extending Mason’s standard directory structure to specify prerequisites, how to build them, and how to incorporate them into the Chapel compiler’s command-line. For example, a Mason package with a C-based prerequisite might use a directory structure like this:

MyMasonPackage/
├── src/
│   └── MyMasonPackage.chpl
├── prereqs/
│   └── SomePrereq/
│       └── code.c
│       └── header.h
│       └── Makefile
└── Mason.toml

To learn more about this new feature, check out the new section of Mason’s documentation, Building Code in Other Languages. Meanwhile, we’re working on further generalizations to supporting prerequisites. Issue #28174 captures some of our ideas, and we are interested in receiving your comments about the feature there as well.

Finally, two additional package management highlights in Chapel 2.7 are that Mason performance has improved significantly, and we have started to modernize Mason’s integration with Spack, a popular package manager designed for HPC.

Improvements to the Dyno Compiler Front-End

As you may have seen in previous release announcements, Dyno is the name of our project that is modernizing and improving the Chapel compiler. Dyno improves error messages, allows incremental type resolution, and enables the development of language tooling. Among the major wins for this ongoing effort is the Chapel Language Server (CLS), which was previously featured in a blog post about editor integration, not to mention Chapel’s linter, VSCode support, and chpldoc.

Our team has been hard at work implementing many features of Chapel’s type system in Dyno, which, among other things, will enable tools like CLS to provide more accurate and helpful information to users. In the 2.7 release, we have continued to improve Dyno’s support for Chapel’s language features, and we’ve also expanded the compiler’s ability to leverage the Dyno front-end to generate executable code.

More Language Features

Dyno’s resolver for types and calls has seen the usual steady stream of improvements. In this release, some notable changes include:

The following screenshots show an editing session in which Dyno-inferred information is rendered in-line using blue text when editing the corresponding code examples. The first example focuses on array formals:

array-formals.chpl
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

proc foo(A: [?D] ?t) param {
  param isRect =
    if A.isDefaultRectangular() then "rectangular" else "not rectangular";
  param eltType = A.eltType:string;
  param dim = D.rank:string;
  return isRect + " " + dim + "-dimensional array of " + eltType;
}

use BlockDist;
var A: [1..10] int;
var B = blockDist.createArray(1..10, 1..10, real);

param infoA = foo(A);
param infoB = foo(B);

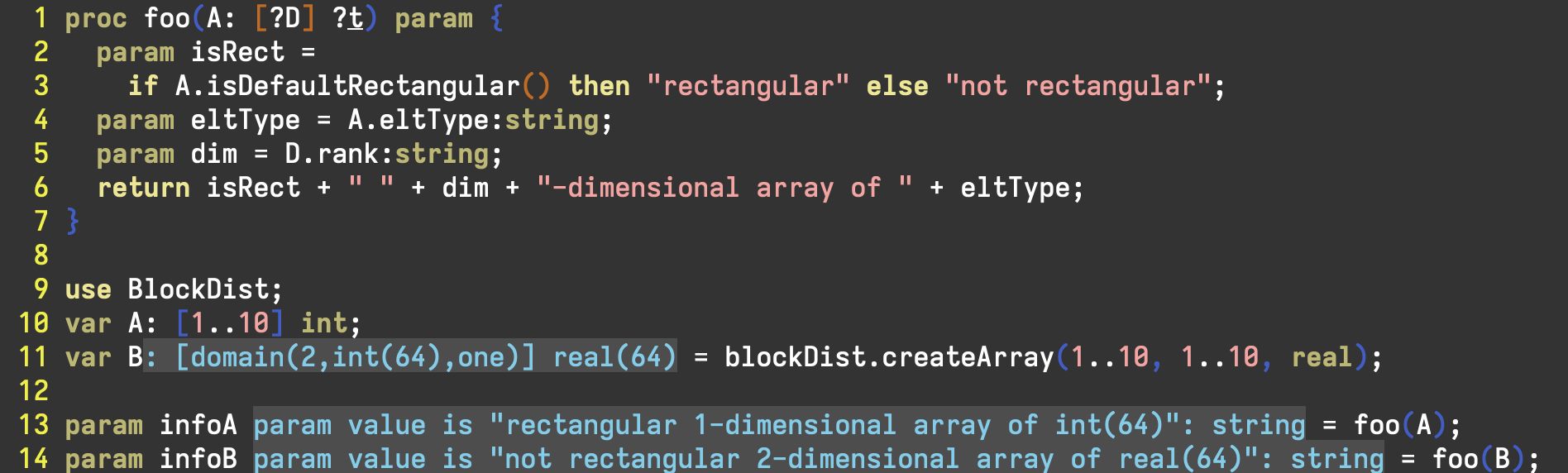

Dyno displaying inferred type information for array formals

In the example above, we use the same generic function foo() to accept both a regular (“default rectangular”) array and a block-distributed array. Both of these arrays are accepted as usual, and queries in the formal type extract the domain and element type information. The infoA and infoB variables therefore contain accurate descriptions of the arrays passed to foo().

The next example demonstrates new support for compiler-generated casts.

casts.chpl
1
2
3
4
5

enum color { red = 1, green, blue }

var myTup = (42, "hello");
var castTup = myTup : (real, int);
param redBytes = color.red : bytes;

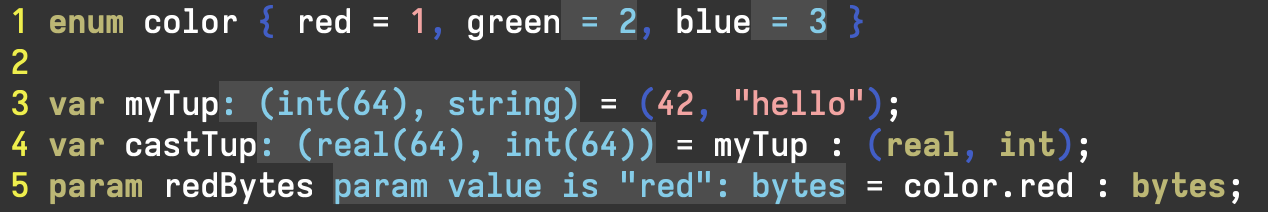

Dyno displaying inferred type information for generated casts

A cast from an integer-string tuple is performed to create a real-integer tuple, casting the integer to a real and the string to an integer. Also, a cast from an enum constant of type color is converted to a param value of type bytes. Finally, notice that the language server is also showing the inferred numeric values corresponding to the enum constants (2 for green and 3 for blue).

Generating Executable Code

This release also saw improvements to our support for using Dyno to generate executable code, which is a major step toward Dyno’s goal of replacing the front-end of the production compiler. This is an ongoing process that involves taking the information that Dyno has computed about the program and generating AST for the production compiler, essentially skipping over its historical type resolution and analysis phases. This capability is enabled using the --dyno command-line flag.

Initial support is limited to a subset of Chapel’s language features, but is growing all the time. Here is an example program and helper module that Dyno can now compile, demonstrating uses of language features like param for-loops and grouped variable initialization. This program also demonstrates Dyno’s ability to compile standard module code, like that found in Chapel’s IO module. This represents a significant step forward in Dyno’s ability to compile real-world Chapel code:

converter.chpl
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

use IO;
use Print; // helper module while we work toward resolving more of IO

// utilize generic varargs and param for-loops to mimic 'writeln' behavior
proc myWriteln(const args...?n) {
  for param i in 0..<n {
    print(args(i));
  }
  println("");
}

// return a tuple from a procedure
proc double(arg: int) {
  return (arg, arg*2);
}

proc main() {
  // uses generic varargs and a param for-loop to mimic 'writeln' behavior
  myWriteln(1, " != ", 2.0);

  // grouped variable initialization, unpacking the result of 'double'
  var (a, b) = double(5);
  myWriteln("a = ", a, ", b = ", b);

  // Open 'stdout' and use the IO module to write a string!
  //
  // Utilizes shared objects, ranges, generic types, enums, interoperability,
  // and a great deal of string manipulating-module code.
  var s = new file(chpl_cstdout());
  var w = s.writer();
  w.writeLiteral("Hello, World!\n");
}
Print.chpl
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92

use Types;
use CTypes;

extern {
  #include <stdint.h>
  #include <inttypes.h>
  #include <stdio.h>
  #include <stdbool.h>

  void printMyChar(int8_t x);
  void printMyInt64(int64_t x);
  void printMyUint64(uint64_t x);
  void printMyReal64(double x);
  void printMyBool(bool x);
  void printStr(const char* str);

  void printMyInt64(int64_t x) {
    printf("%" PRId64, x);
  }

  void printMyUint64(uint64_t x) {
    printf("%" PRIu64, x);
  }

  void printMyReal64(double x) {
    printf("%lf", x);
  }

  void printMyChar(int8_t x) {
    printf("%c", x);
  }

  void printMyBool(bool x) {
    if (x) {
      printf("true");
    } else {
      printf("false");
    }
  }

  void printStr(const char* str) {
    printf("%s", str);
  }
}

extern proc printMyChar(x: real(64));
extern proc printMyInt64(x: int(64));
extern proc printMyUint64(x: uint(64));
extern proc printMyReal64(x: real(64));
extern proc printMyBool(x: bool);
extern proc printStr(str: c_ptrConst(c_char));

proc doPrintSpace() do printMyChar(32);
proc doPrintNewline() do printMyChar(10);

proc print(x: ?t) {
  if t == bool {
    printMyBool(x);
  } else if isIntType(t) {
    printMyInt64(x);
  } else if isUintType(t) {
    printMyUint64(x);
  } else if isRealType(t) {
    printMyReal64(x);
  } else if t == string {
    printStr(x.c_str());
  } else if t == c_ptrConst(c_char) {
    printStr(x);
  } else if isTupleType(t) {
    // TODO: Param loop this...
    // TODO: Move this to 'print'...
    if x.size >= 1 then print(x[0]);
    if x.size >= 2 { doPrintSpace(); print(x[1]); }
    if x.size >= 3 { doPrintSpace(); print(x[2]); }
    if x.size >= 4 { doPrintSpace(); print(x[3]); }
    if x.size >= 5 { doPrintSpace(); print(x[4]); }
    if x.size >= 6 { doPrintSpace(); print(x[5]); }
    if x.size >= 7 { doPrintSpace(); print(x[6]); }
    if x.size >= 8 { doPrintSpace(); print(x[7]); }
    if x.size >= 9 { doPrintSpace(); print(x[8]); }
  } else if isEnumType(t) {
    var temp : int = chpl__enumToOrder(x);
    printMyInt64(temp);
  } else {
    // TODO: 'halt()'
  }
}

proc println(x) {
  print(x);
  doPrintNewline();
}

The program above can be [note:The --no-checks flag is used here to disable runtime checks that utilize language features not yet supported by Dyno’s code generation.] with --dyno --no-checks to produce an executable that prints the following output:

converter.good
1
2
3

1 != 2.000000
a = 5, b = 10
Hello, World!

Looking ahead, we plan to continue expanding the set of supported language features and standard modules that Dyno can compile. In the near term we will be directing our focus to fully resolving writeln() itself, and tackling additional core language features like iterators and error handling.

Stay tuned as we continue to add support for more features to Dyno!

For More Information

If you have questions about Chapel 2.7 or any of its new features, please reach out on Chapel’s Discord channel, Discourse group, or one of our other community forums. We’re also always interested in hearing about how we can make the Chapel language, libraries, implementation, and tools more useful to you.
